Product Details:
|

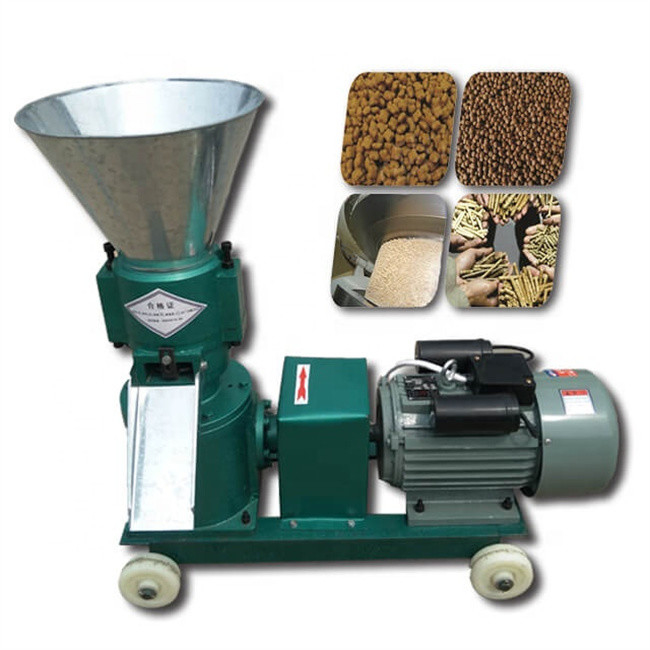

| Name: | Animal Poultry Feed Pellet Making Machine Cat Dog Feed Pellet Machine | Model: | BH-300 |
|---|---|---|---|
| Voltage: | 220V/380V/customized | Capacity: | 750KG/H |
| Weight: | 300kg | Dimension(l*w*h): | 115*45*95CM |
| Advantage: | High Efficiency Easy Operation | Final Product: | Feed Pellet |
| Function: | Aquatic Feed, Ruminant Feed, Pet Food | Spare Parts: | Flat Die+ Rollers |
| Highlight: | 100KG/ H Poultry Feed Pellet Machine,Poultry Feed Pellet Machine 220V,dog food pellet machine 3KW |
||
| Model | Capacity (kg/hr) | Power(KW) | Weight(kg) | Dimension (cm) |
| BH-125 | 80-100 | 3 | 95 | 110*35*700 |
| BH-150 | 110-150 | 4 | 98 | 115*35*80 |
| BH-210 | 200-300 | 7.5 | 280 | 115*45*95 |
| BH-230 | 350-450 | 11 | 300 | 138*46*100 |
| BH-260 | 500-600 | 15 | 315 | 130*53*105 |
| BH-300 | 700-800 | 22 | 600 | 145*62*120 |
| BH-360 | 800-900 | 22 | 795 | 160*67*145 |
| BH-400 | 1000-1200 | 30 | 1000 | 160*67*145 |
Matters need attention
1. The new machine for the first time must be run or otherwise can't be used normally.
2. When the pellet machine is working, don't reach into the input hopper by hand. If necessary, you can use a stick to help.
3. Before the machine is turned on, you need to add a little mixture before starting. When the machine is shut down, please leave a little mixture in the machine to prevent the roller and the template idling.
4. When the machine is working, and the phenomenon of stuck happens, should immediately stop and make the roller pressed to the bolt loose, and then restart the machine.
5. Each time the work is completed, the bolt of adjusting roller must be released.
6. If the machine is used for a certain period of time or squeeze out a certain amount of pellets and the pellets are made into pieces or the pellets are broken, the template should be turned to the bottom, and 2%-4% water should be added to the mixture.
7. Please often check the belt tightness to prevent the emergence of low yield, belt slippery and so on.
8. Before starting, firstly add gear oil to the gearbox reaching to 2/3 of the horizontal axis. Pellet machine in the first use should work in low load for 40 hours or so, and then replace the gearbox gear oil, 100 hours after the regular replacement. All bearings should be regularly filled with grease.
9. Particle machine works continuously and then the motor fever reaches to 70 degrees Celsius, it is a normal phenomenon.
