Product Details:
|
| Name: | Poultry Feed Pellet Machine | ITEM: | Pellet Making Machine |
|---|---|---|---|
| Weight (KG): | 350 | Driven Type: | Motor ,diesel Engine |
| Lubrication System:: | Use Recycling Lubrication Oil | Pellet Diameter: | 3~25 Mm (can Be Selecation) |
| Warranty: | 1 Year | Raw Material: | Grass, Rice Husk, Wood Sawdust, Biomass, Straw, Cotton |
| Die Material: | Alloy Metal 3CR13 | Show Room: | Viet Nam, Indonesia |
| Key Selling: | Easy To Operate | Voltage: | Customized |
| Certificate: | CE ISO | Dust Remove System: | Cyclone And Bag Dust, To Remove The Dust |
| Capacity: | 850kg/h | Application: | Making Wood Pellet Fuel And Poultry Feed |
| Keyword: | Cattle Feed Pelletizer Machine | ||
| Highlight: | 3mm Poultry Feed Pellet Machine,rabbit feed pellet mill 50HZ,12mm rabbit pellet machine |
||
livstock poultry feed wood pellet machine pigs rabbits chickens ducks fodder feed pellet mill
1-12mm Floating Fish Feed Production Line For Making tilapia Animal Pet cat dog Bird Piglets Food puffing Mill Extruder
Electric poultry chicken feeds grass pellet making machine diesel cattle pelletizer machine for animal
Animal Poultry Livestock cow goat cattle chicken duck fodder extruder floating fish Feed Pellet Making processing mil Machine.
1.Brief introduction:
Wood Pellet Machine is mainly used for making crude fiber materials into pellets.
2.Function:
1).Granule/pellet for the fish, chicken, Animal for animal feed.
2).Can be used for Making biomass, sawdust pellet,for bio fuels.
3.Features:
1).Powered by both diesel engine ,gasoline and motor,PTO driven
2).Direct Connection of motor shaft and belt drive
3).Can run smoothly with few noises.
4).Pellet Machine can equipped wheel,move around.
5).Machine can be used for making feed pellet,also make wood pellets.
4.Raw material:
1)sawdust, rice husk,straw,grass,crop stalks etc. biological fertilizer, animal manure
2)Moisture required: 10-15%.
3)Size:3-5 mm.
5.Final Pellet:
The Pellet Diameter is Dia 2.5mm, 4mm, 6mm, 8mm, 10mm, 12mm, etc,At option.
6.Processing of Pellet Machine
1). Crushing ( Make the raw materials to be sawdust )
2). Conveyor (Delivery material into dryer machine )
3). Dryer Machine ( If the raw materials has too much moisture)
4). Conveyor ( Delivery material into pellet machine )
5). Pelletizing ( Convert sawdust into Pellets )
6). Cooling and packing ( Cooling pellet ,and packed pellet into bag for selling )
| Model | Motor Power |
Motor voltage |
Size | output (kg/h) |
Roller diameter | Moisture | |
| No. | (KW) | (V) | (MM) | Wood | Feed | (MM) | (%) |
| 200A | Diesel 15 | - | 118*56*95 | 110-140 | 200-300 | 2.5-10 | 12%-20% |
| 200B | Electric 7.5 | 380V 50HZ | 100*43*95 | 110-140 | 200-300 | 2.5-10 | 12%-20% |
| 200C | Electric 7.5 | 380V 50HZ | 100*46*90 | 110-140 | 200-300 | 2.5-10 | 12%-20% |
| 230A | Diesel 22 | - | 118*56*95 | 150-190 | 300-400 | 2.5-10 | 12%-20% |
| 230B | Electric 11 | 380V 50HZ | 114*47*97 | 150-190 | 300-400 | 2.5-10 | 12%-20% |
| 230C | Electric 11 | 380V 50HZ | 114*54*93 | 150-190 | 300-400 | 2.5-10 | 12%-20% |
| 260A | Diesel 35 | - | 184*70*116 | 220-280 | 400-600 | 2.5-10 | 12%-20% |
| 260B | Electric 15 | 380V 50HZ | 112*52*107 | 220-280 | 400-600 | 2.5-10 | 12%-20% |
| 260C | Electric 15 | 380V 50HZ | 112*53*107 | 220-280 | 400-600 | 2.5-10 | 12%-20% |
| 300A | Diesel 55 | - | 227*62*126 | 300-360 | 600-800 | 2.5-10 | 12%-20% |
| 300B | Electric 22 | 380V 50HZ | 127*52*107 | 300-360 | 600-800 | 2.5-10 | 12%-20% |
| 300C | Electric 22 | 380V 50HZ | 128*60*105 | 300-360 | 600-800 | 2.5-10 | 12%-20% |
| 360A | Diesel 55 | - | 227*62*126 | 300-380 | 600-800 | 2.5-10 | 12%-20% |
| 360C | Electric 22 | 380V 50HZ | 134*58*106 | 300-380 | 600-800 | 2.5-10 | 12%-20% |
| 400A | Diesel 55 | - | 227*62*126 | 400-550 | 900-1100 | 2.5-10 | 12%-20% |
| 400C | Electric 30 | 380V 50HZ | 152*60*115 | 400-550 | 900-1100 | 2.5-10 | 12%-20% |

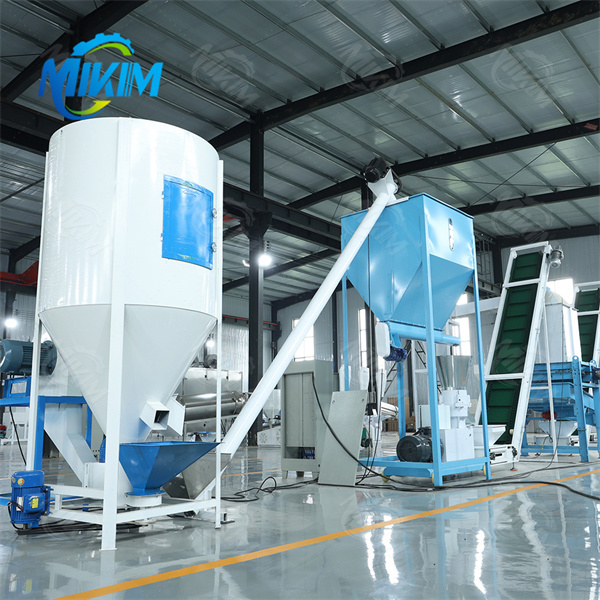

MIKIM is one leading Comprehensive company with own brand and after-service for projects related with mushroom cultivation equipment ,Waste mushroom substrate recycle machinery,company has passed the ISO9001 authentication , Standing on the international market.
Our main products:
such as sawdust Crusher,sawdust Dryer,wood chipper,charcoal briquette machine,wood briquette press,mushroom Bag filling machine,PLC Bag filling production line,Charcoal Briquette and Pellet Production line etc.Agricultural Farm and Woodworking machinery.
