Product Details:
|
| Name: | Mini Hammer Mill Machine Wood Chip Crusher Machine Feed Processing Machines | Driven Type: | El Motor/Diesel Engine |
|---|---|---|---|
| Warranty: | 1 Year | Condition: | New |
| Type: | Hammer Mill | Capacity(t/h): | 300-1000kg/h |
| Dimension(L*W*H): | 1300×800×1000 | After-sales Service Provided: | Video Technical Support |
| Highlight: | mini hammer mill machine H1m,mini hammer mill machine 1.3×0.8×1m,hammer mill mini rice bran |
||

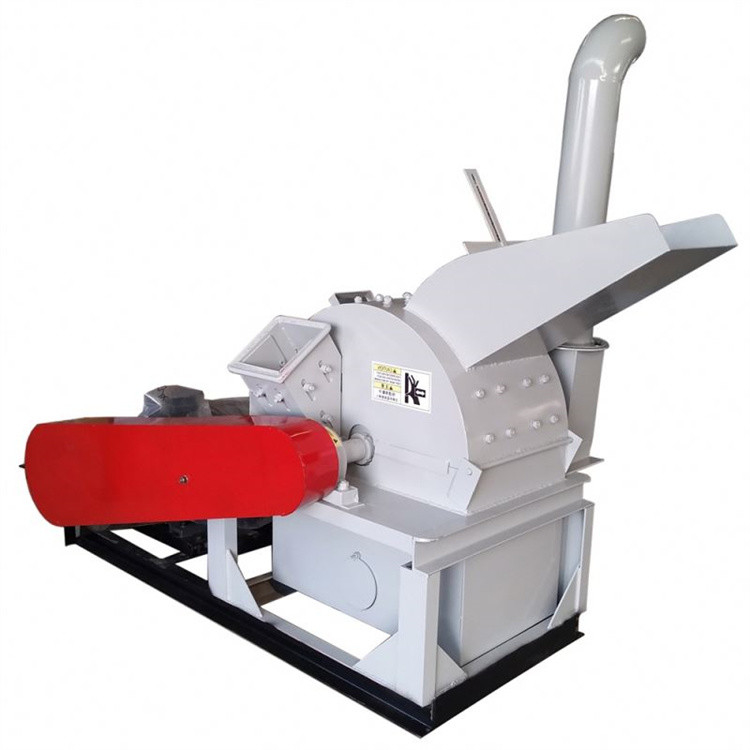

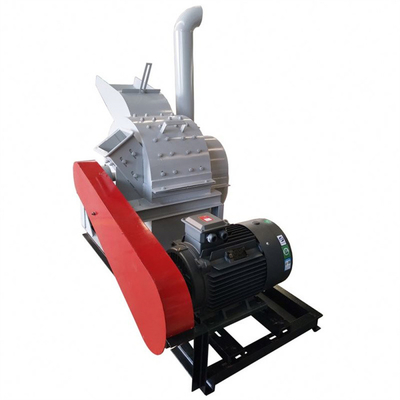

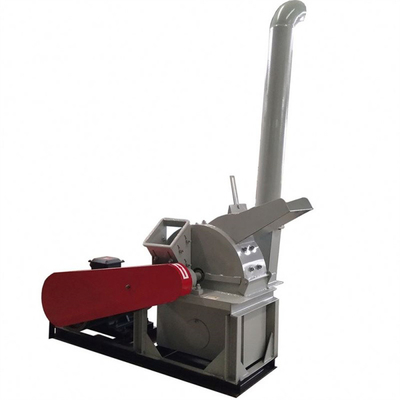

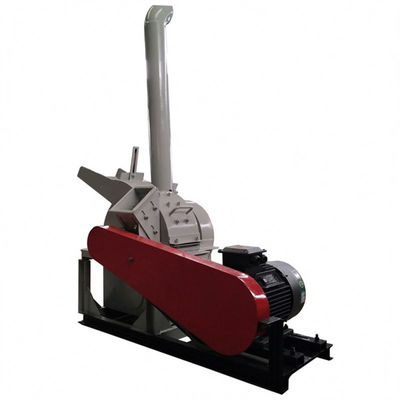

Mini Hammer Mill Machine Wood Chip Crusher Machine Feed Processing Machines
Feed hammer mill is a kind of hammer mill equipment that mainly relies on hammers to strike materials to crush. The crushed materials can be directly blended with corn grits, rice bran, bean cakes and other feeds for poultry to eat. Used in feed factories, breeding farms and individual agricultural households.
Main technical parameters
| Model | 40 | 50 | Driven type |
| Rotor Diameter(mm) | 400 | 500 | El motor/Diesel engine |
| Capacity (T/H) | 300-800 | 500-1000 | El motor/Diesel engine |
| Hammer Qty (pieces) | 13 | 16 | El motor/Diesel engine |
| Main Power (kw) | 7.5 | 15 | El motor/Diesel engine |
| Dimension(L×W×H) | 1300×800×1000 | 1380×800×1010 | El motor/Diesel engine |
| Weight (KG) | 270 | 450 | El motor/Diesel engine |
The hammer chip mill is mainly suitable for crushing various forage grass, such as: corn stalks, bean stalks, peanut stalks, sweet potato stalks, dry weeds, corn, grains, sweet potato seedlings, corn stalks, wheat straws and grains, bean cakes, bran The crushed size can be manufactured according to customer requirements. This machine is used for dry and wet feed. It can process dry feed such as dry corn stalks, dried sweet potato seedlings, and dry weeds, as well as wet feed such as fresh corn stalks, fresh sweet potato seedlings, green weeds, vegetables, fresh sweet potatoes, and fresh potatoes. This machine is widely used in farms, pasture feed processing plants and households that raise livestock and poultry to process a variety of dry and wet feed.
working principle:
The hammer mill is composed of a feed hopper, an upper and lower body, a rotor, a screen, a fan, and a feeding pipe. Users can equip storage bags or storage bins according to their own needs. After the material enters the crushing chamber from the feed hopper, it is crushed by the impact of the high-speed rotating hammer. Driven by the airflow, the crushed objects are continuously crushed along the outer edge of the rotor by hitting, colliding and rubbing against the hammers, tooth plates, and screens. The crushed powder particles are quickly transported to the storage bag or storage bin through the sieve due to the centrifugal pressure of the rotor and the suction force of the fan.
Product advantages:
1. The hammer mill has a wide range of crushing, including wood chips, shavings, branches, wood chips and various crop straws, corn stalks, cotton stalks, rice husks, peanut shells, sweet potato seedlings, grain straws, wheat straws, etc.
2. Advantages of hammer mill products, simple structure, convenient operation and wide processing range.
3. The hammer mill has a wide range of applications. It is used in crop straw crushing and processing. It is an ideal processing equipment for feed mills, charcoal mills, straw coal mills, and breeding plants. It is used in many fields such as straw pellet fuel, pellet feed, straw briquetting fuel, new straw building materials, straw door making, biomass power generation and so on.
MIKIM is devoted to offer biomass pellet machine series , carbonization furnace series, mobile gas heater, organic fertilizer production series, and animal feed productione series. We can provide various solutions for different raw materials, which can meet the market demands. We had passed the ISO9001 quality system and got the CE certification for all of our machines. So far, we have successfully finished many customized projects according to our clients’ demands and we are capable of providing the best solution and support as per your requirement. Our equipment is to convert waste biomass products into environmentally friendly new energy that can be effectively utilized.
According to the different needs of customers, we provide corresponding equipment and solutions. Customers not only save costs and maximize benefits, but also protect the environment.
What we offer: 1) Good quality machine 2) Highly competitive prices 3) Timely and effective after-sales service 4) Best professional team of guide and assemble 5) Effective OEM&ODM service
Contact Person: Fiona
Tel: 86 19913726068
