Product Details:
|
| Name: | Wood Crusher Hammer Mill Machine Wood Chip Crusher Machine For Wood Sawdust Maker | Voltage: | 380V |
|---|---|---|---|
| Warranty: | 1 Year | Type: | Hammer Mill |
| Capacity(t/h): | 210-1000kg/h | Dimension(L*W*H): | 2620*1340*1455 |
| Installation: | Engineer Guide | After Sale Service: | Life-long Service |
| Highlight: | Hammer Mill Machine 7.5kw,Hammer Mill Machine 210kg/ h,380V diesel hammer mill |
||

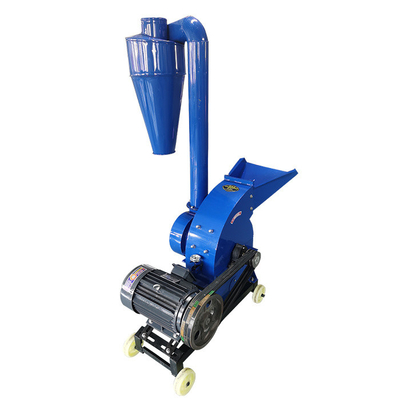

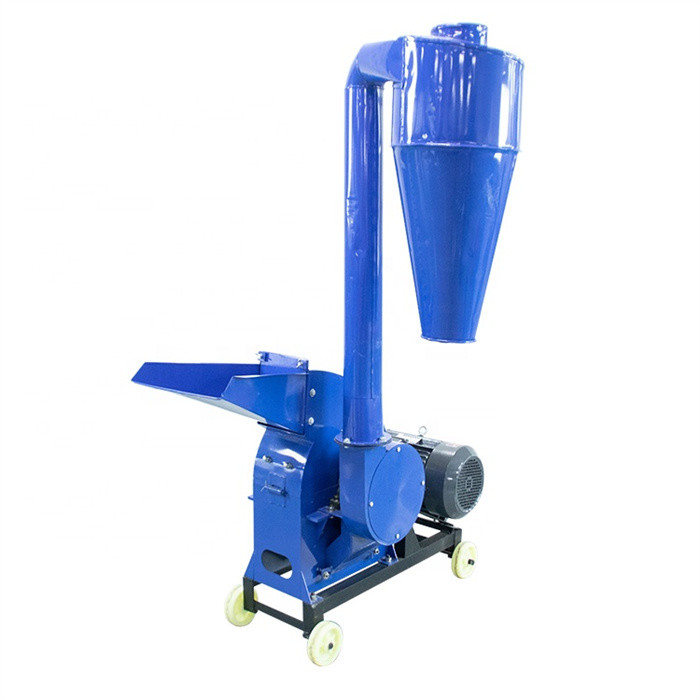

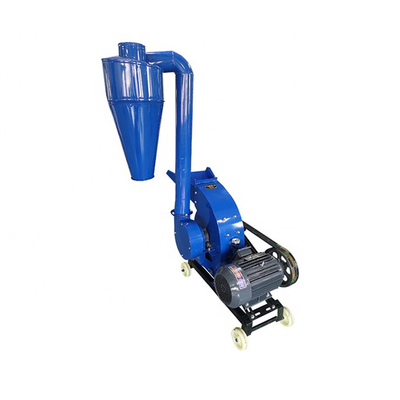

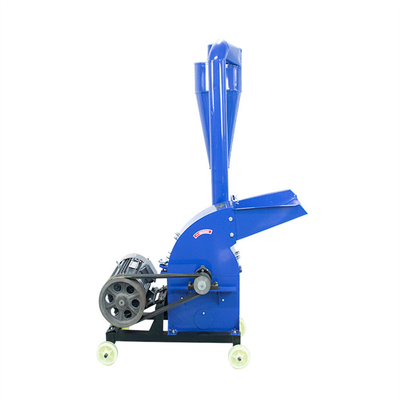

Wood Crusher Hammer Mill Machine Wood Chip Crusher Machine For Wood Sawdust Maker
The hammer mill animal feed crusher used to crush fresh/dry sweet potato, straw, husk, wheat, corn, beans and other grains. The main features of hummer mill are all up to national standard, with its simple structure, easy operation, high efficiency, low noise, and stainless steel structure. It is quite popular in China and all around the world.
When hammer mill/animal feed crusher work, the raw materials will be feed to crushing room through the feeder, under the impact/crash of high speed rotating hammers, the raw materials will be crushed rapidly, then go through the screen and be sucked to the outlet. The size of screen can be customized as requirements
The equipment can also be used as raw materials, which for produce edible mushrooms, shaving board, sawdust board and dense board. Our wood crusher is the special chipping/crushing equipment for raw wood of 50-250 mm (diameter). During the working process, the raw wood will be chipped, re-crushed and sieved, the wood crusher combines both chipping and crushing in one machine to get the wood sawdust directly. The diameter of wood sawdust can reach to 2-5 mm, which is suitable for further drying and briquette. No need to use other wood chippers.
| SPECIFICATIONS FOR WOOD CRUSHER MACHINE | ||||
| Model | Power ( kw) | Capacity ( kg/h) | Net/Gross Weight ( kg) | Package Size (m3) |
| FSJ-I400 | 7.5 | 210-250 | 300/250 | 1.2*1.2*1 |
| FSJ-II400 | 11 | 200-300 | 300/350 | 1.2*1*1.2 |
| FSJ-I600 | 11 | 400-500 | 325/375 | 1.23*0.81*1.14 |
| FSJ-II600 | 15 | 500-600 | 350/400 | 1.25*0.85*1.15 |
| FSJ-I800 | 18.5 | 600-800 | 800/750 | 1.7*0.9*1.5 |
| FSJ-II800 | 22 | 700-900 | 780/820 | 1.7*0.9*1.5 |
| FSJ-800 | 30HP | 700-900 | 900/950 | 2.3*1.6*1.5 |
| FSJ-1000 | 30 | 800-1000 | 1100/1200 | 1.8*1.05*1.4 |
Product Usage
1. Use the wood crusher to crush wood into sawdust;
2. Use the sawdust dryer to pull the moisture out of sawdust;
3. Use the Sawdust Forming Machine to press sawdust into stick;
4. Use the wood charcoal bake stove to bake the stick into charcoal;
5. Then use the wood crusher again to crush the charcoal into powder;
6. Use the powder molding machine to press the charcoal powder into all kinds of shape(you can custom many kinds of mould);
7. Use the packing machine to package the shaped charcoal.
Our factory is mainly focused on animal feed pellet making line, Cat litter equipment (including crusher, hammer mill, mixer, pellet machine, pellet cooler, pellet packing machine etc) and organic fertilizer equipment(including fermentation tank, flat die pellet machine, cooler etc). Except exporting above machines, our trading department also can supply searching products service and field trips , products inspection before loading based on customer requirement as well as exporting service etc. At present, we have cooperated with customers to inspect and purchase wood pellet machines, wood chipper, cattle and sheep salt block licking machines, parts procurement, dust removal equipment, magnetic separation equipment, generator sets, extruder units etc. In one words, your demand is the direction of our progress. Choose us, your trust will never be betrayed.
